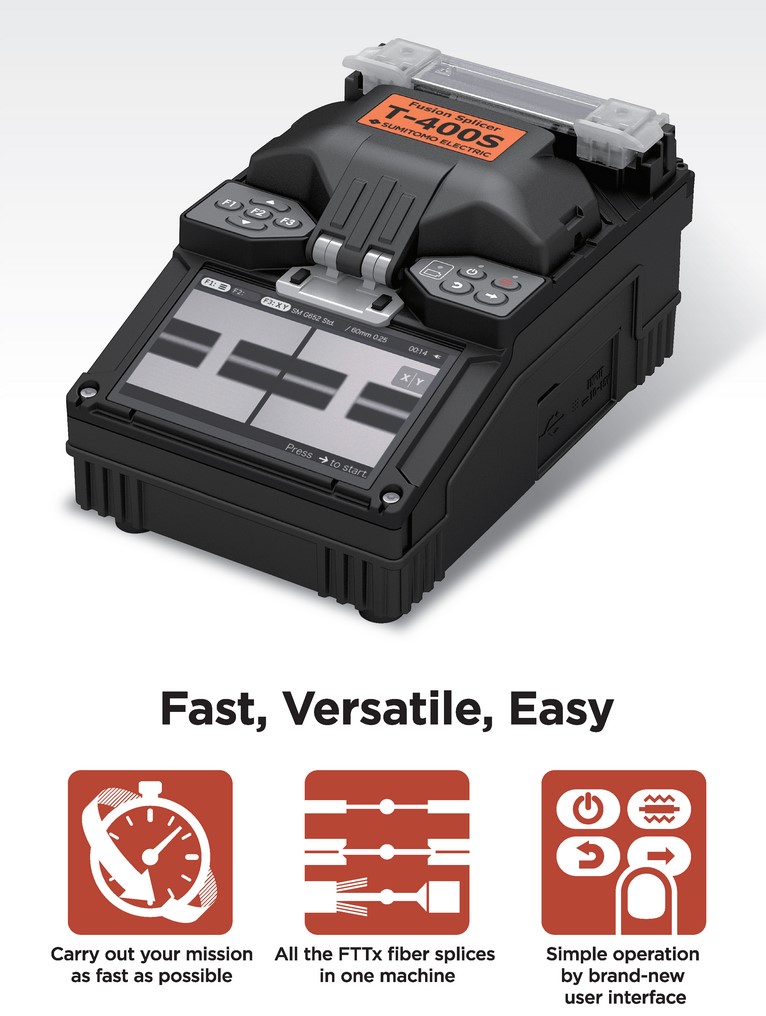

Active Clad Alignment Fusion Splicer

Sumitomo make Model T-400S is a user-friendly Splicer for FTTH use. Its compact design and unique technology helps to handle all types of fiber cable used in FTTH


- Fast splicing 6sec / heating 24sec
- Simple operation with brand new user interface
- Active V-groove technology helps to align the fiber even up to 125um gap
- Internal memory can save up to 10,000 splice data and 100 splice images
- 150 Splice programs and 50 heating programs
- Dust-free, water resistant and shock-proof
- 3200mAh battery can complete 200 Splice/Heating cycle

 T 400S1

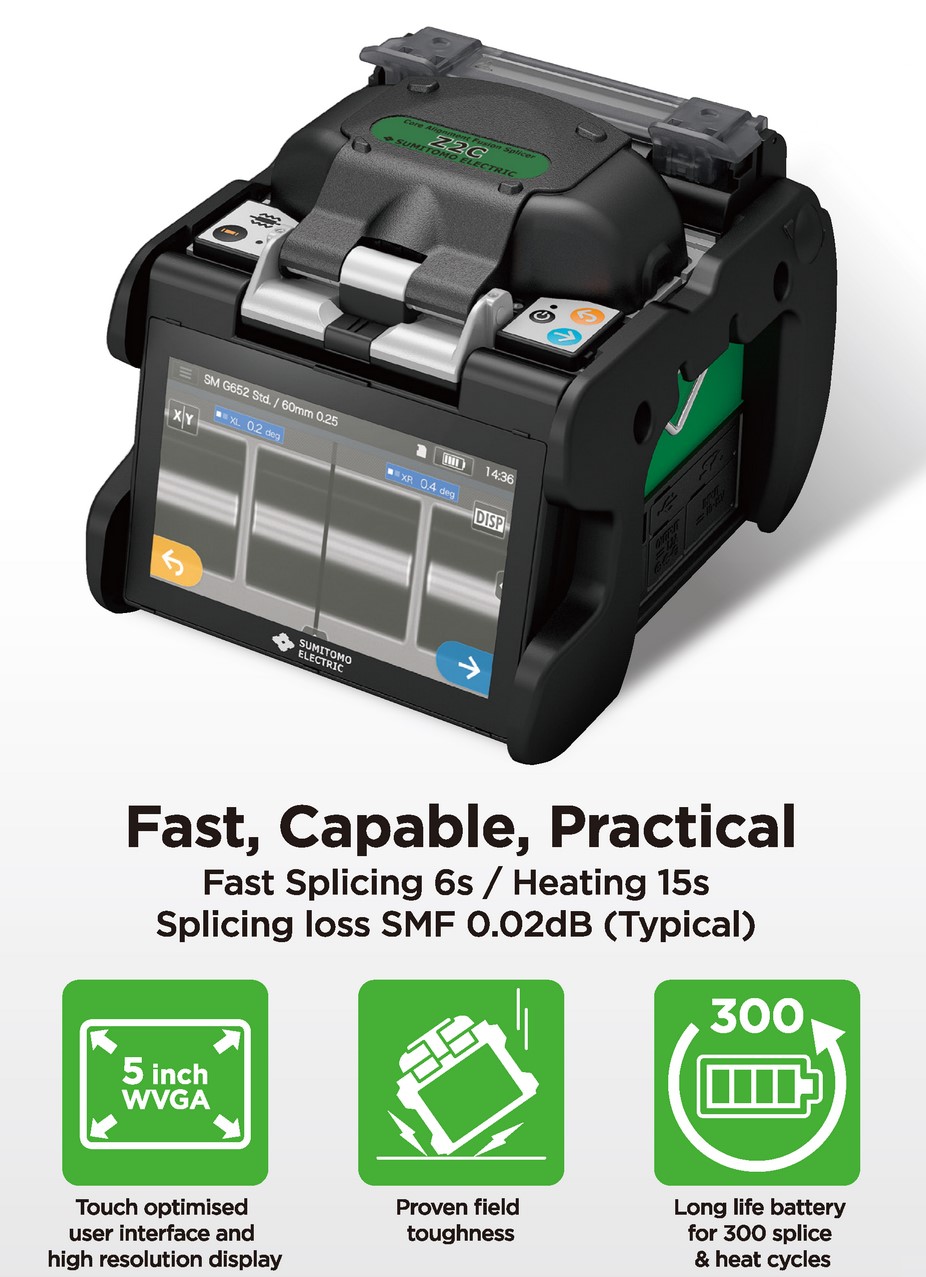

Automatic Adaptive Core fusion splicer

Fusion splicer Z2C has High–resolution Direct Core Monitoring (HDCM) image processing software, is used to perform core alignment and estimates splice loss for creating low-loss optical fiber splices with typical splice loss of less than 0.02dB for single-mode fiber and less than 0.01dB for multimode. Like other Sumitomo splicers, the Z2C is manufactured with durable metal rather than plastic materials predominantly used in the industry.

- Compact and lightweight with only 2.0 kg weight including battery
- Long life battery for 300 splice & heat cycle
- Ultra fast splicing (6 sec.)
- Ultra fast heating (15 sec.)
- Dust-free, water resistant and shock-proof
- 5" touch screen color LCD display

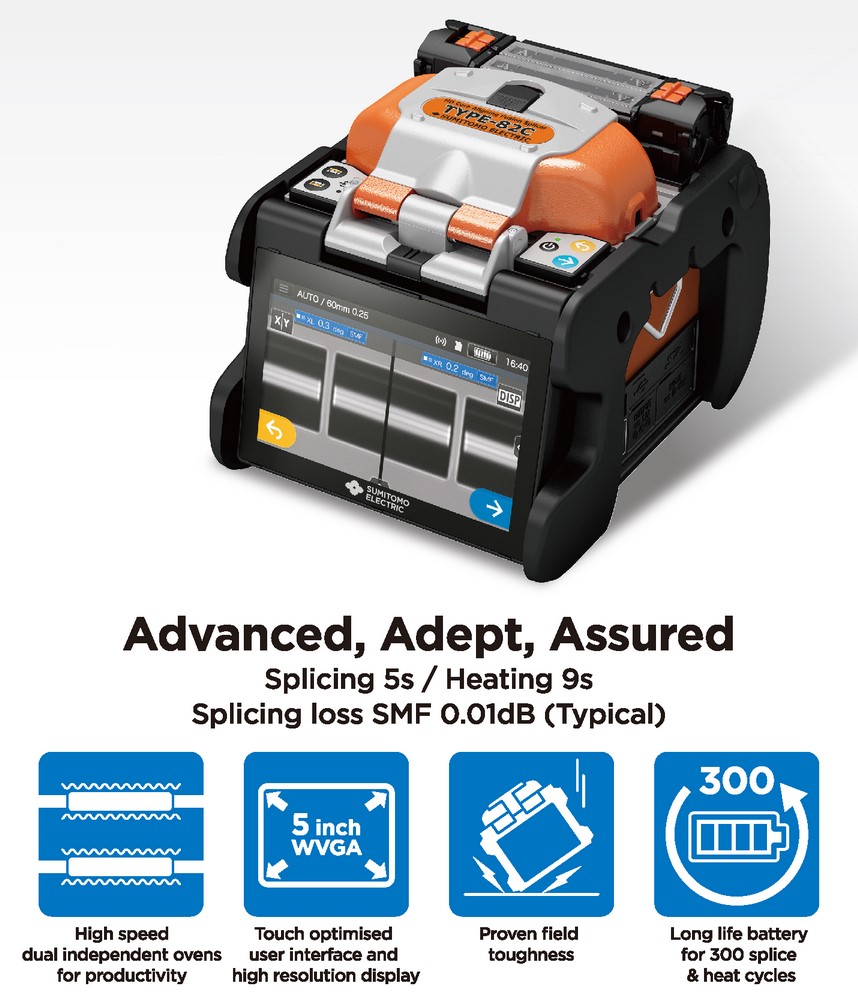

High Definition Core Alignment Fusion Splicer

The TYPE-82C’s advanced electronic design, which accommodates the built-in dual heating system and simultaneous operation, makes the faster fusion splicer available on the market by reducing the bottle neck of “heater wait time”. With an individual heater cycle time of only Approx.29 seconds (60mm Fiber protection sleeves) and a splice cycle of only Approx.5 seconds (Quick mode), the TYPE-82C improves splicing efficiency and productivity dramatically, thereby reducing labor time and costs while increasing project and customer service turn-up.

- Compact & lightweight with only 2.2 kg weight including battery
- Ultra fast splicing (5 sec.)
- Ultra fast heating (9 sec.)
- Fully optimized dual independent ovens
- Long-life battery for 300 splice & heat cycles
- Dust-free, water resistant and shock-proof
- Touch-screen operation with brand-new UI Smartphone-like easy operation

 TYPE 82C1
