ETHERNET AND TRANSPORT TESTING UP TO 100G BER TEST
EXFO Bertest 100G Ethernet
Versatile 10M-to-100G multiservice test modules for lab and field applications
CHOOSE THE PORTABLE PLATFORM THAT MEETS YOUR FIELD TESTING NEEDS

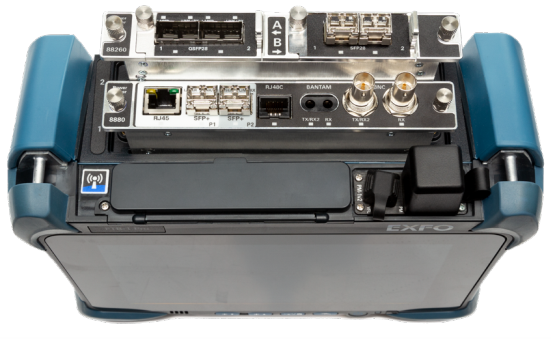

FTB-1 Pro dual carrier
FTB-1 Pro dual-carrier configuration offers engineers and field technicians multiple configurations by hosting two modules allowing simultaneous optical, Ethernet and transport testing, depending on the modules used in the platform. It provides optical and electrical interfaces from 56K to 100G to easily turn-up, validate and troubleshoot transport technologies (OTN, SONET/SDH, DSn/PDH, ISDN), 5G and fronthaul (eCPRI, CPRI, OBSAI,OpticalRF), Fibre Channel and Ethernet services, including QUAD-port 10G multiservice testing

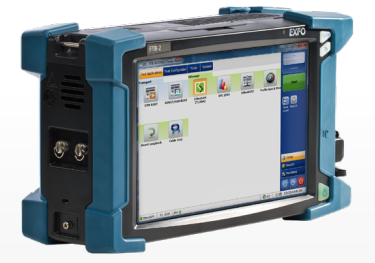

FTB-2 Pro modular platform
EXFO’s most compact modular lab-focused portable platform features two slots that can house optical and T&D modules.
When equipped with 2 x FTBx-88200NGE or 2 x FTBx-88260, the FTB-2 Pro enables 4 x 100GE testing.

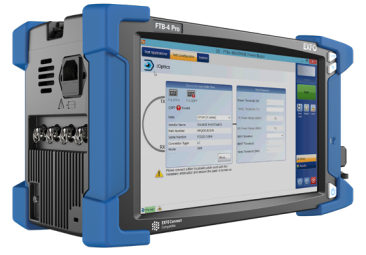

FTB-4 Pro modular platform
The FTB-4 Pro offers four slots to house different optical and T&D modules:FTBx-8880, FTBx-8870, FTBx-88200NGE and FTBx-88260. This platform is the most suitable portable lab solution in a test scenario that requires optical spectrum analysis, OTDR validation and multiservice multitechnology service verification.
When equipped with 4 x FTBx-88260 or 4 x FTBx-88200NGE, the FTB-4Pro can test up to 8 x 100GE circuits running simultaneously.

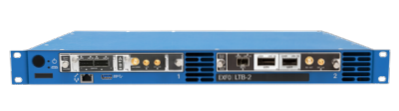

LBT-2 rackmount
The LTB-2 rackmount solution is a more compact version of the LTB-8 platform and occupies one rack unit. It can host two single-slot modules that run concurrently and independently. When equipped with 2 x FTBx-88260 or 2 x FTBx-88200NGE, this solution can test up to 4 x 100 GE simultaneously
LBT-8 rackmount
The LTB-8 is 3U-high platform that offers rackmount or benchtop operation for both lab and production environments plus eight slots that can be accessed individually. It can host optical and T&D FTBx modules such as FTBx-8880,FTBx-8870, FTBx-88200NGE and FTBx-88260.
When equipped with 8 x FTBx-88260 or 8 x FTBx-88200NGE, this multiservice,multitechnology solution can test up to 16 x 100GE simultaneously.
CHOOSE THE TRANSPORT AND DATACOM MODULE THAT MEETS YOUR TESTING REQUIREMENTS

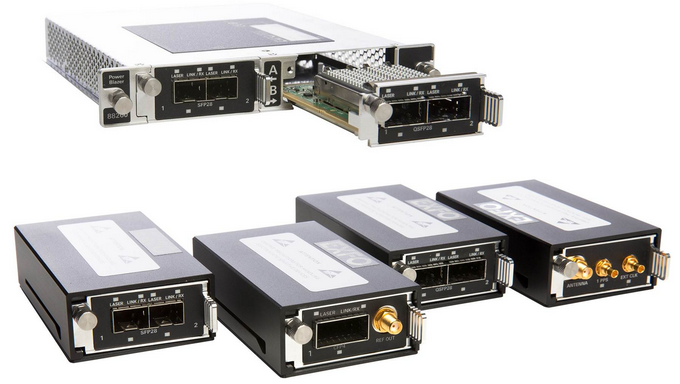

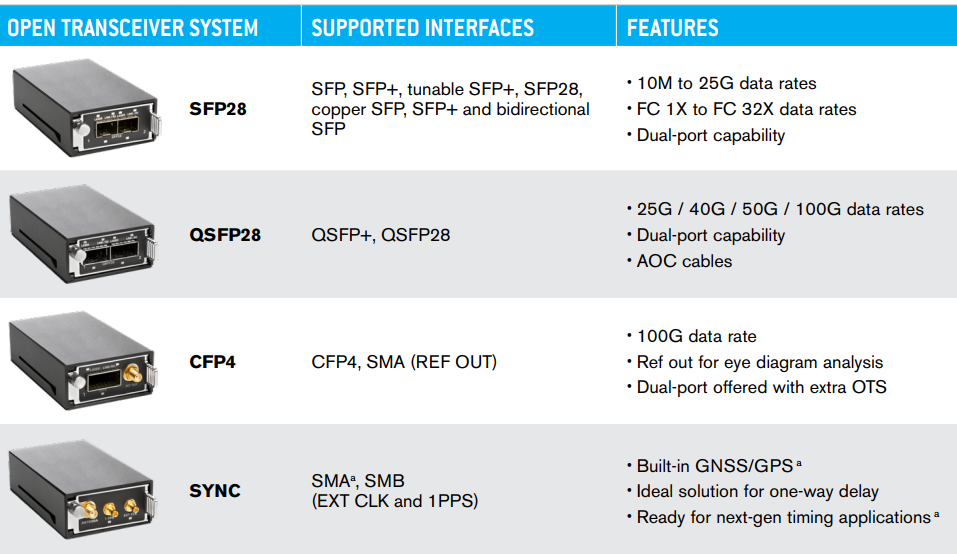

Open Tranceiver System on FTBx-88260
The iOptics - intelligent pluggable optics test application is a first-alert test that can be used in the field or lab environment to efficiently evaluate proper operation of an optical device or cable using minimal user configuration. The test application performs the validation using several subtests, in addition to monitoring the optical-device power consumption and temperature, and reports an individual verdict for each subtest and monitoring task. The test application also automatically collects the device manufacturing information, enabling the user to ensure that the desired device has been tested.
