Series Handheld Tester
ETHERNET AND TRANSPORT TESTING UP TO 10G BER TEST
EXFO Bertest 10G Ethernet

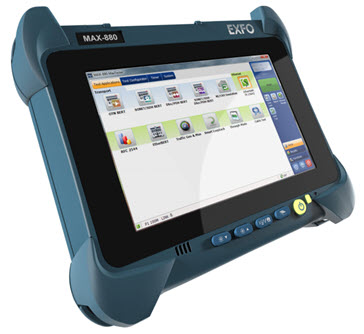

The MAX-800 Series is an easy-to-use, portable 10G test solution. Optimize your field technicians’ tasks by running up to two 10G tests simultaneously.
KEY FEATURES AND BENEFITS
Platform Highlights
- Custom-designed platform with 64 GB of onboard memory including a micro SD card interface (massively expand the memory)
- Ultra-bright 8-inch multitouch screen

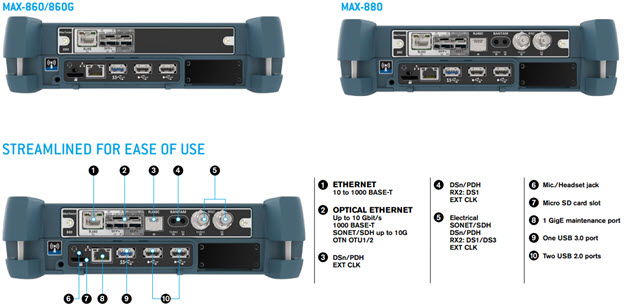

- Built-in connectivity—choose between Gigabit interface, Wi-Fi, Bluetooth, and 3G or 4G LTE via USB dongle
Lightweight and portable solution designed for field engineers or cell technicians installing, troubleshooting and maintaining backhaul, OTN, SONET/SDH and DSn/PDH Carrier Ethernet networks
Ethernet
- Dual-port testing up to 10G

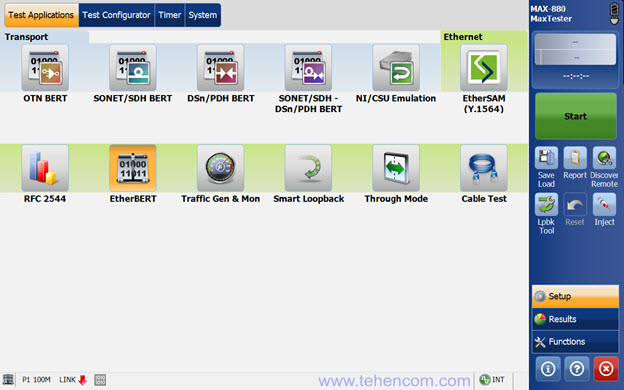

- EtherSAM, RFC 2544, traffic generation, EtherBERT, Through mode, Smart Loopback and second-port loopback tool
Transport Testing
- OTN testing OTU ½
- Optical SONET and SDH testing up to 10G
- Electrical SONET and SDH testing
- DSn testing DS1, DS3 and dual DS1/DS3 RX
- Plesiochronous digital hierarchy (PDH) testing: E1, E3 and E4
- Automatic protection switching and service disruption on all interfaces and mappings
- Round-trip delay on all interfaces and payload mappings
- Overhead monitoring and modification for all time slots
- Pointer adjustment
TRAFFIC GENERATION AND MONITORING

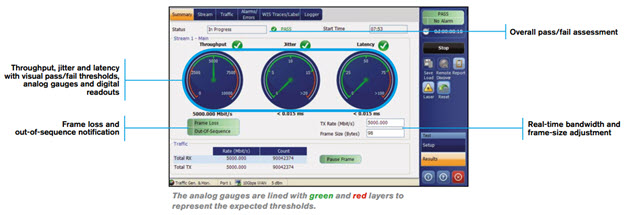

Unparalleled analog visual gauges combined with user-defined thresholds instantaneously show whether the test traffic is in or out of expected ranges.
Additionally, bandwidth and frame size can be modified on the fly with no need for navigation to a different page, giving technicians instantaneous reaction from the gauges. Traffic generation brings together over 10 critical
