EXFO FTB Lite Series

FTB Lite 700 Series - connected OTDRs

OTDRs driving unmatched field efficiency with always-on connectivity on a rugged platform

FTB Lite 720D | FTB Lite 730D | FTB Lite 735D | FTB Lite 750C

PT. Visi Indotama Perkasa | EXFO Indonesia

EXFO’s FTB Lite Series features always-on connectivity, designed to solve issues, such as lack of compliance and expertise, inefficient processes, and delays in getting the latest updates.

Always-on connectivity provides:

  1. Automated validation and effortless compliance: Automated job tracking and real-time reporting confirm adherence to methods of procedure (MoP) ensure compliance with testing standards while reducing errors and administration time.
  2. Enhanced collaboration and efficiency: Real-time data sharing, automated uploads, and cloud-based reporting enable seamless teamwork, faster decision-making, and accelerated project timelines.
  3. Valuable insights: Automated access to comprehensive live data to perform analytics and extract insights, enabling informed decision-making and planning.

FTB Lite 720D - connected access OTDR

Dynamic range of up to 36 dB in singlemode (SM) and 29 dB in multimode (MM).

Construction and troubleshooting of singlemode and multimode access networks

FTB Lite 730D - connected access OTDR 

Dynamic range up to 39 dB for up to 132 km point-to-point (P2P) or 1×128 PON.

FTTx/MDU fiber rollouts and troubleshooting. Can also test metro networks

FTB Lite 735D - connected metro/PON OTDR  

Dynamic range up to 42 dB for up to 144 km point-to-point (P2P).

Metro core and FTTx/MDU fiber deployments and troubleshooting.

FTB Lite 750C - connected metro/longhaul OTDR

Dynamic range of up to 46 dB.

Characterization of long-distance fiber and of upgrades to optical networks.

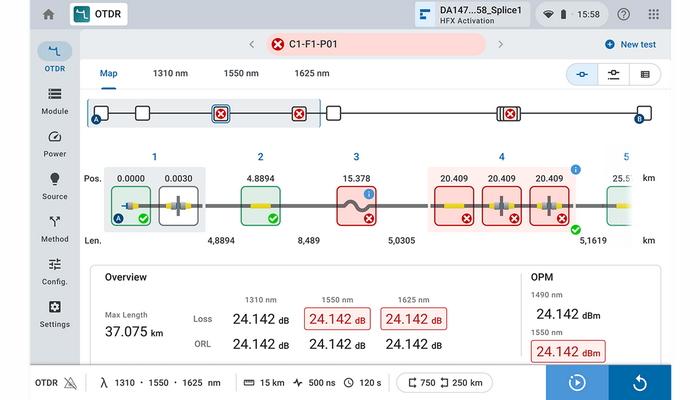

Icon-based mapping

Optical Link Mapper (OLM) is included with all FTB Lite OTDRs.

OLM interprets OTDR traces automatically and provides an icon-based view of the elements on the link:

  • Automatic analysis of multiple wavelengths with a consolidated link view display.
  • Synced with events and placed below the linear view to see all events on the link.
  • Display of end-to-end link length, loss and ORL according to pass/fail settings.
  • Automatic parameter settings and clear go/no-go results.
  • Prompt guidance on where and what the network issues are.

.

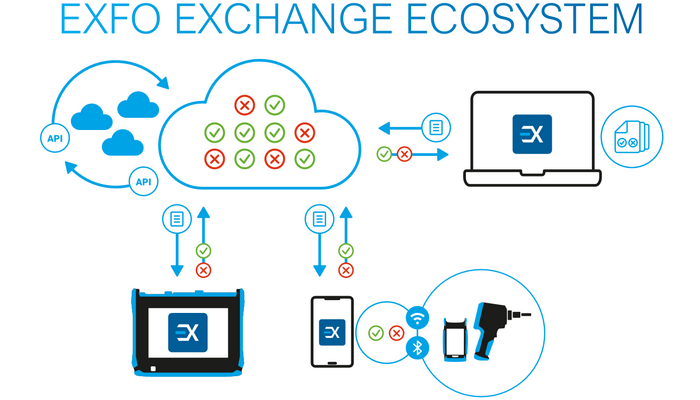

EXFO Exchange

Sharing test results and ensuring compliance

Paired with EXFO’s leading test instruments, EXFO Exchange drives an entire ecosystem, while integrating seamlessly with existing operation processes.

Connected First solution

With always-on mobile/cellular connectivity

  • Powered by a global leader in IoT and mobile connectivity
  • 2G/3G/4G LTE, GNSS (GPS, Galileo) radio
  • EXFO data plan: 36-month free data*† plan available to all FTB Lite units (NRF will be possible in future)
  • Get jobs, upload result summary, get notifications
