Handheld Cable and Antenna Analyzer With Spectrum Analyzer & VNA

Anritsu MS2085A - MS2089A Site Master cable and antenna analyzer with spectrum analyzer and VNA option is the ideal instrument for installing, maintaining and troubleshooting RF communication systems up to 6 GHz

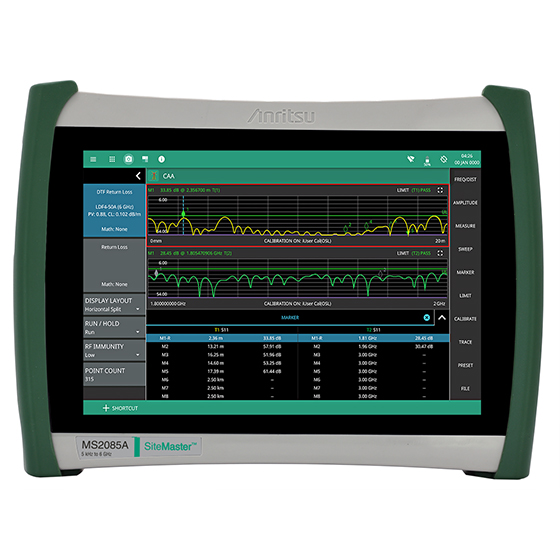

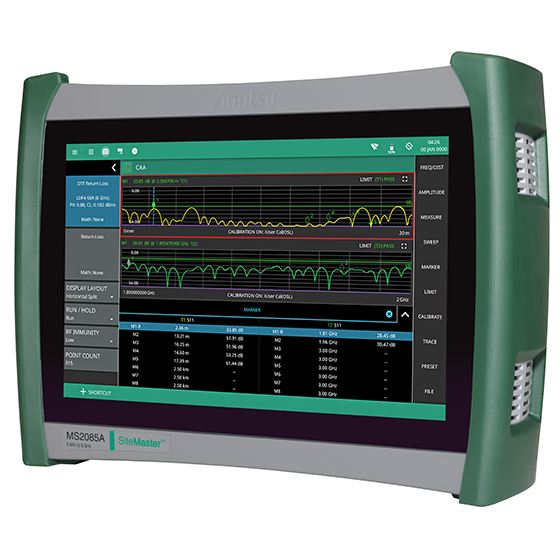

MS2085A
Cable and Antenna Analyzer : 5 kHz to 4 GHz or 6 GHz
Vector Network Analyzer Option : 5 kHz to 4 GHz or 6 GHz

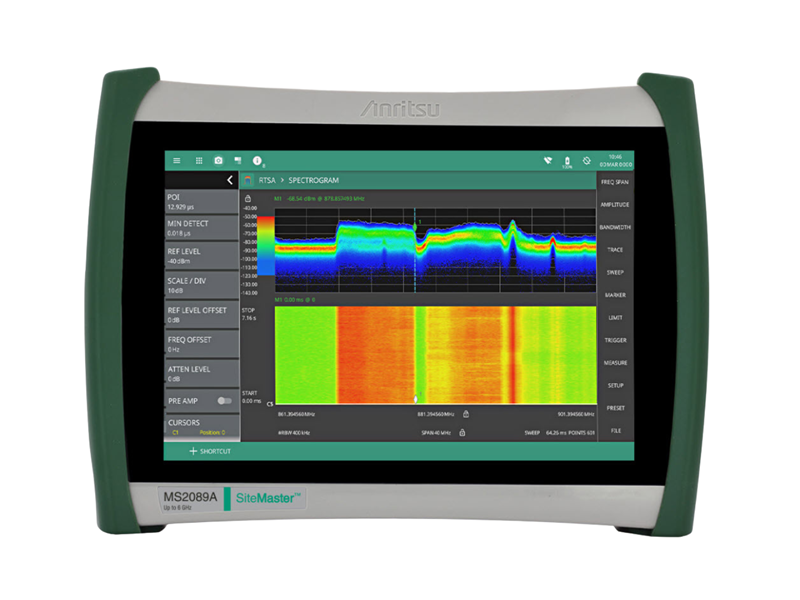

MS2089A
Cable and Antenna Analyzer : 5 kHz to 4 GHz or 6 GHz
Spectrum Analyzer : 9 kHz to 4 GHz or 6 GHz
Vector Network Analyzer Option : 5 kHz to 4 GHz or 6 GHz

Cable and Antenna Analyzer Highlights

The MS2085A is a 5 kHz to 4,6 GHz cable antenna analyzer that weighs less than 7 lb with an IK08 10-inch touch screen.

• Built-in PDF/HTML report generation
• Ability to add/edit/import and export a cable list from the instrument
• TDR measurements
• Sweep Speed: 350 µs / data point in fast sweep mode
• Data Points: 10,04

Spectrum and Interference Analyzer Highlights

The MS2089A comes in two configurations. The first configuration is a 5 kHz to 4 GHz cable antenna analyzer with a 9 kHz to 4 GHz spectrum analyzer. The second configuration is a 5 kHz to 6 GHz cable antenna analyzer with a 9 kHz to 6 GHz spectrum analyzer. The MS2089A weighs less than 8.5 lb and has the same IK08 10-inch touch screen.

• IQ capture/Streaming
• Real-Time Spectrum Analyzer (RTSA)
• LTE FDD/TDD Analyzer
• 5GNR FR1 Analyzer
• Interference Analyzer

Vector Network Analyzer and Vector Voltmeter Highlights
The optional VNA and VVM add detailed analysis capability with performance previously only available in bench top instruments.

• 2-Port 1 Path VNA to 4/6 GHz
• 380 µs/point fast sweep speeds
• 100 dB dynamic range
• Default ReadyCal plus support for Mechanical and InstaCal user calibrations
• 16 display types including: Log Mag, VSWR, Phase, Smith Chart, Group Delay and Polar
