Anritsu Micro OTDR

Anritsu MT9090A Micro OTDR

Network Master series OTDR Field Optical Testing Redefined

MU909014C/14C6/15C/15C6
MU909014B/14B1/15B/15B1
MU909014A1
PT. Visi Indotama Perkasa | Anritsu Indonesia

Introducing the first handheld OTDR that does not compromise performance – the new μOTDR from Anritsu. With performance that
rivals traditional OTDRs that are four times the size and more than double the price, the Network Master MT9090A μOTDR has created
a new class of test instruments. It features 2 cm resolution for accurate mapping of events, dead zones of 0.8-meter (2.6-feet) and a
dynamic range of up to 38 dB – enough to test over 150 km (90+ miles). The MT9090A μOTDR also takes portability to a new level by
being the first handheld OTDR that truly fits in the palm of your hand.
Vindotama supply Anritsu Micro OTDR MT9090A with module MU909014C, MU909014B, MU909014A series

Product Features :
-  High-end OTDR performance in a pocket-size package
-  Exclusive, integrated launch fiber provides accurate initial connector measurement without external devices
-  Excellent mid-range performance where it matters most
-  "Fiber Visualizer" mode simplifies operation, no OTDR knowledge needed
-  Bluetooth, Wi-Fi and Ethernet connectivity
-  Complete PON testing through splitters up to 1 x 64
-  High resolution and extremely short deadzones ensure thorough short fiber evaluation
-  Rugged, sealed design provides years of service in the most challenging environments
-  High resolution, widescreen color display that is easy to read indoors or out
-  Modular platform ensures maximum return on investment
-  Compact and lightweight design for maximum portability in the field
-  Complete fiber maintenance tool including optical power meter and visible source "red light"
-  1625 nm & 1650 nm models for in-service maintenance and troubleshooting

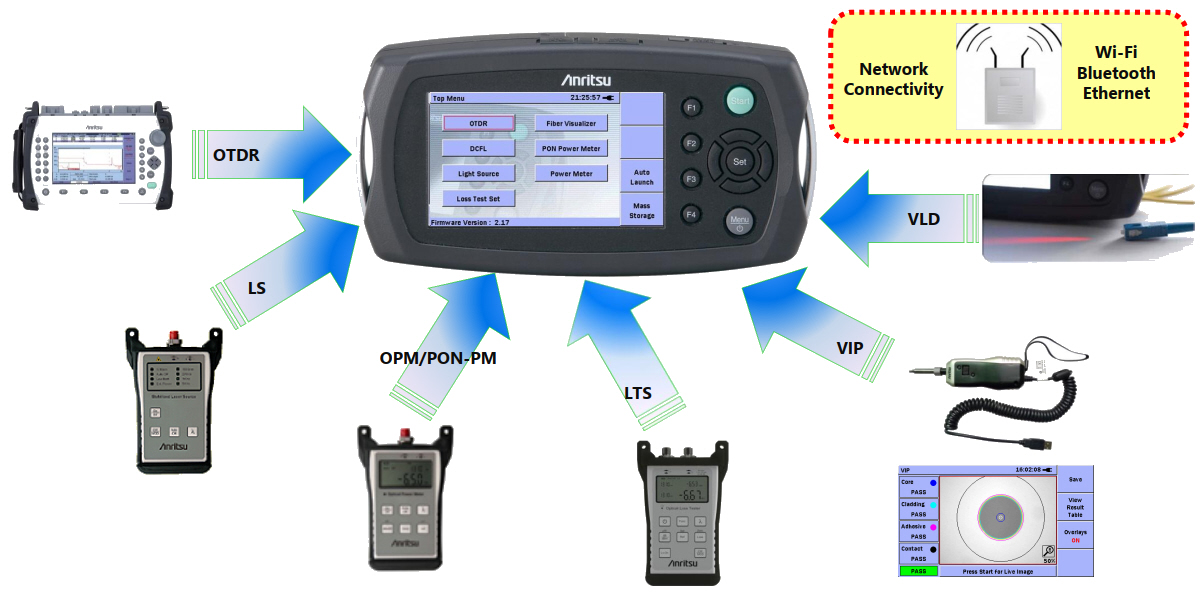

All required fiber tests in a single OTDR!

There are three types of µOTDR module: single wavelength (1625 nm or 1650 nm) for the FTTx maintenance market including Metro networks, dual wavelength (1310 nm/1550 nm) for the installation market, and triplewavelength for both these markets.

These all-in-one µOTDR modules support every function required at fiber installation and maintenance, as well as OTDR functions. The PON Power Meter and Power Meter are ideal for loss measurements required for quality measurements and basic fault tests.


New µOTDR is available to test optical fiber by seven functions

  • OTDR
  • Light Source (LS)
  • Optical Power Meter (OPM)
  • Loss Test Set (LTS)
  • PON Power Meter (PON-PM)
  • Video Inspection Probe (VIP)
  • Visible Laser Diode (VLD)

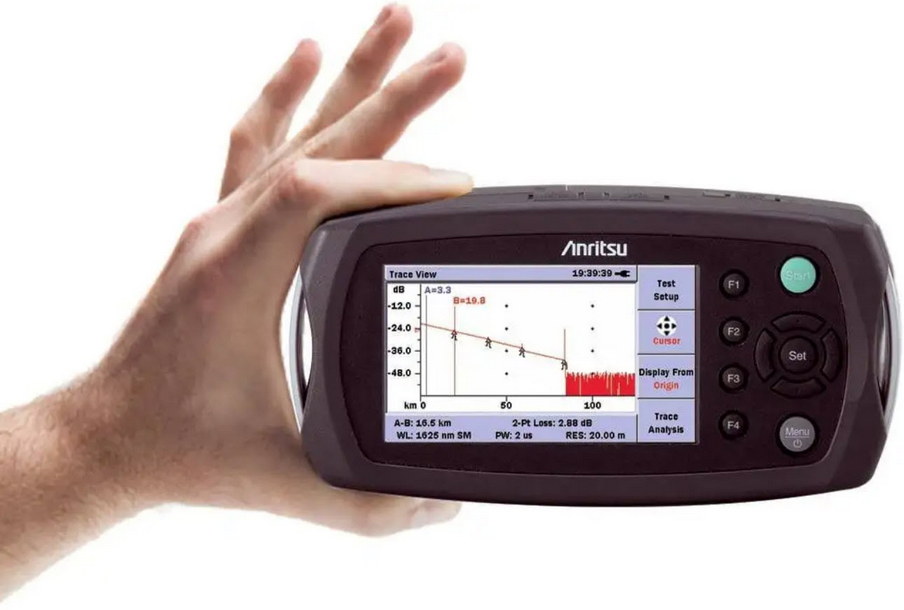

Pocket Size OTDR

Easily held with one hand

  • Palm-size (190mm x 96mm x 48mm)
  • Approximately 700g

Battery operation

  • Max. 8 hours operation (with STD Battery pack)
  • 4 hour recharge (with STD Battery pack)
  • NiMH battery pack or “AA Alkaline Dry Battery” operation

Rugged design

  • Sealed design – no vents or fans
  • Wrist strap to prevent “accidental” drops

Color indoor/outdoor display standard

  • 4.3” high resolution
  • Landscape format naturally fits OTDR trace

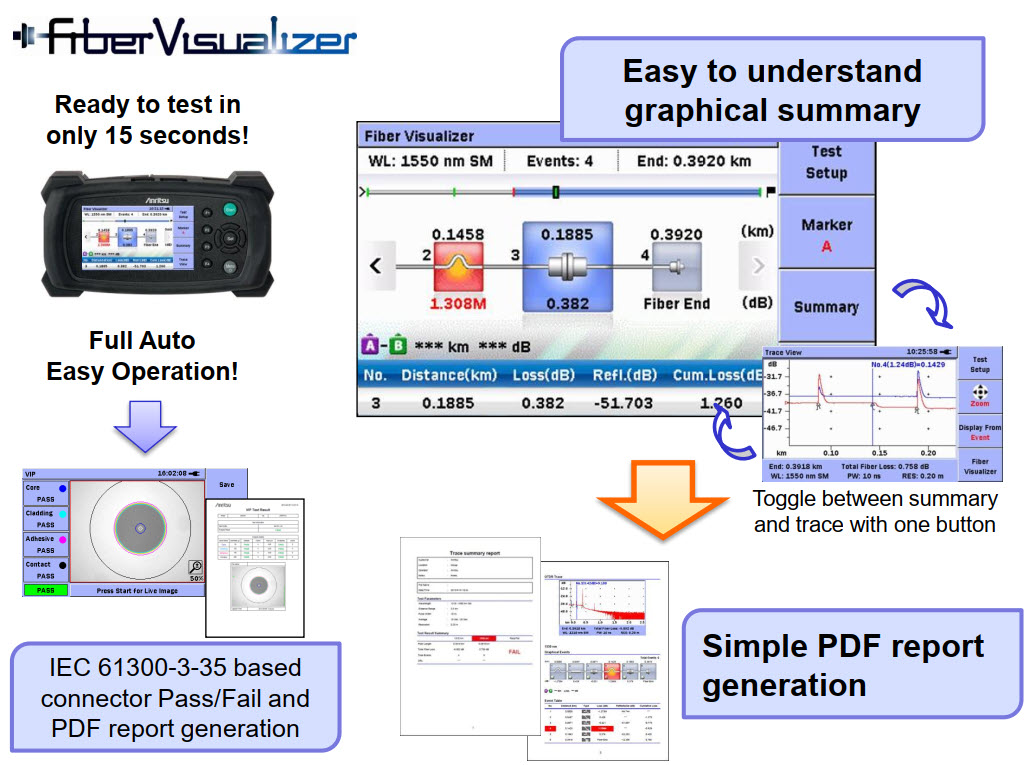

Fiber Visualizer Mode

“Fiber Visualizer” is a new fault locate function designed to simplify the entire testing process. Fiber Visualizer automatically selects the testing parameters to ensure the correct setup and provides a simple, graphical summary of the fiber under test within seconds. A comprehensive PDF report can then be customized and generated, completing the testing process.

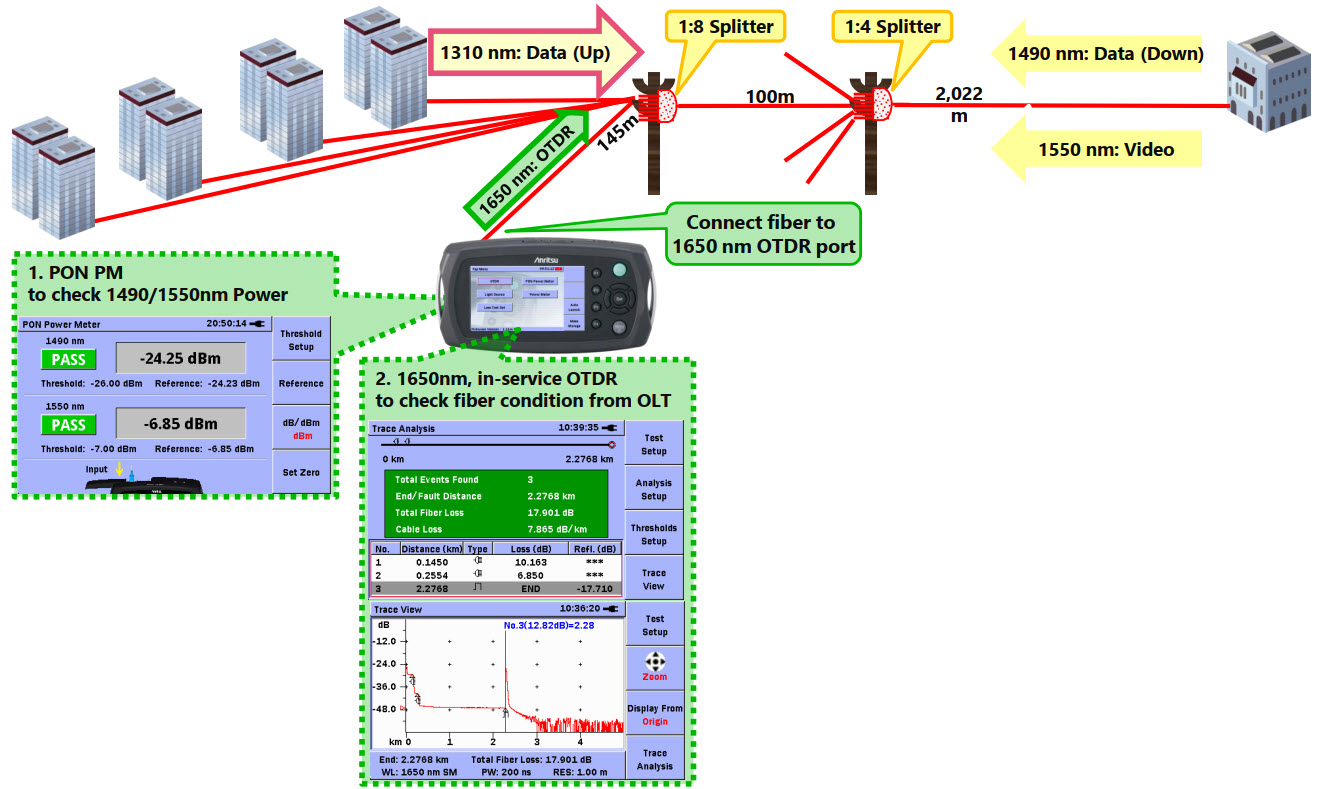

Complete Test tool for In-service (PON Maintenance)

For the maintenance phase, there are very useful PON-PM (PON Power Meter) function and 1650 nm OTDR functions.

1.Connect fiber to µOTDR (1650 nm OTDR port) and check the down stream Power of each Wavelength simultaneously

2.Perform the OTDR test (without connection change) and easily locate fault Power level too low at both wavelengths Cause of the loss

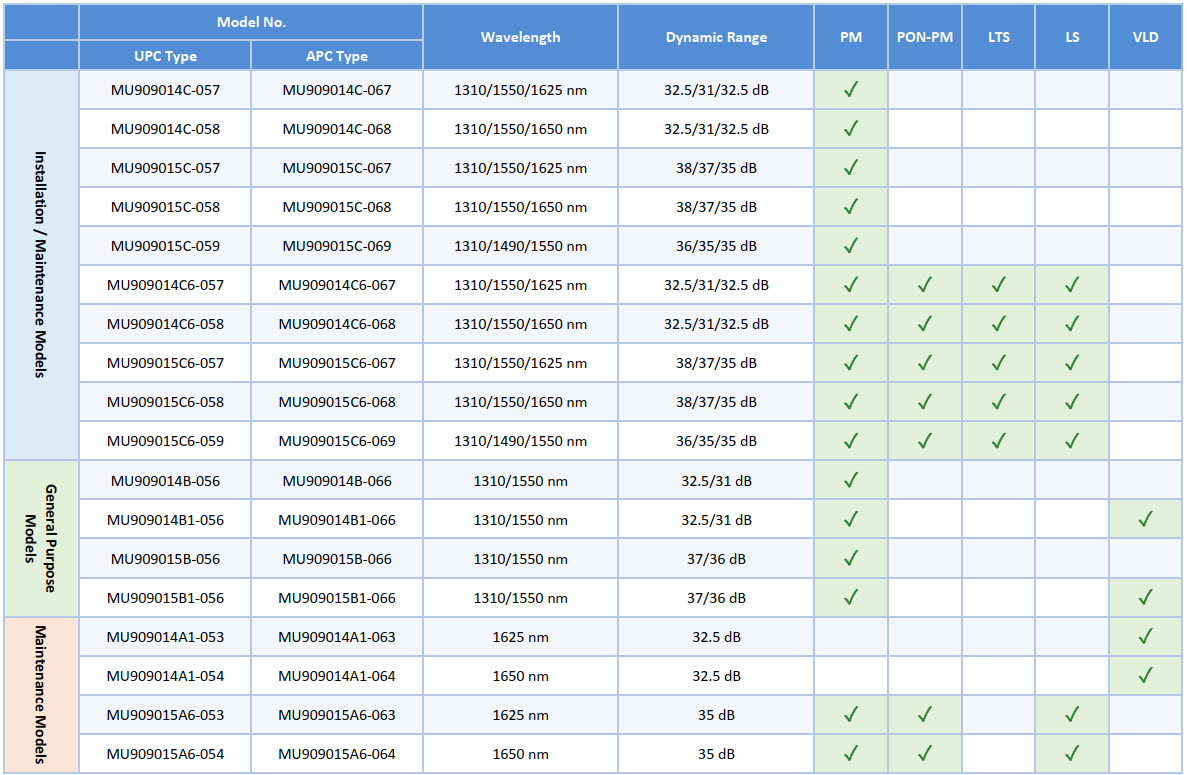

MT9090A OTDR Module Models

Anritsu Micro OTDR

Small but Capable

Despite its small size, the MT9090A does not compromise performance or features. With a high resolution indoor/outdoor display, excellent optical performance, innovative features and expandable modular design, the MT9090A Network Master is clearly in a different class than most other "handheld testers"
