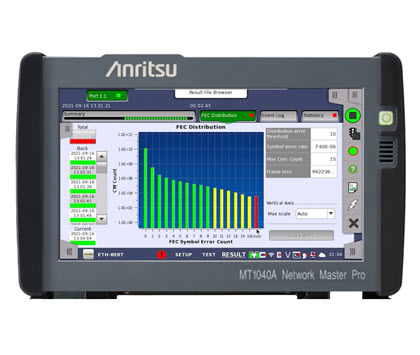

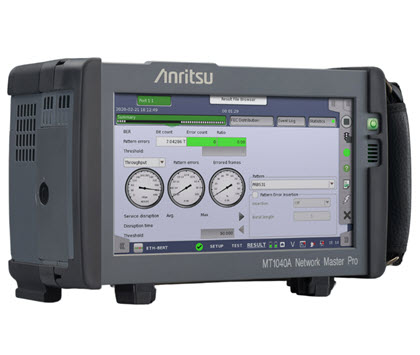

Anritsu MT1040A - 400G Ethernet Tester

The Anritsu MT1040A Network Master Pro is a portable network tester that helps evaluate how well your network is communicating at speeds from 10 Mbps to 400 Gbps. It’s specifically designed for 400G Ethernet networks, which use Forward Error Correction (FEC). The MT1040A has a built-in FEC analysis function that helps evaluate the quality of your network, including QSFP-DD and OSFP optical modules and devices. With this powerful tool, you can easily measure and analyze your network performance to ensure that everything is running smoothly.
Vindotama supply BERT Test RFC2455 Anritsu 100G 400G Ethernet tester MT1040A

Features

• 200G/400G 2 port simultaneous measurement, independent control possible
• Providing quantitative evaluation in 200G/400G FEC essential technology change
• Easy to analyze the correlation on the different parameters and on different layers with unique history function
• High Power supply and sufficient cooling mechanism for pluggable coherent (100ZR /400ZR /OpenZR+ /OpenROADM)
• Support 4x100G and 2x200G breakout test with Ethernet test
• Improve customer testing efficiency through automated testing (SEEK)
• Efficient expandability by stackable structure Transport + Transport, Transport + OTDR

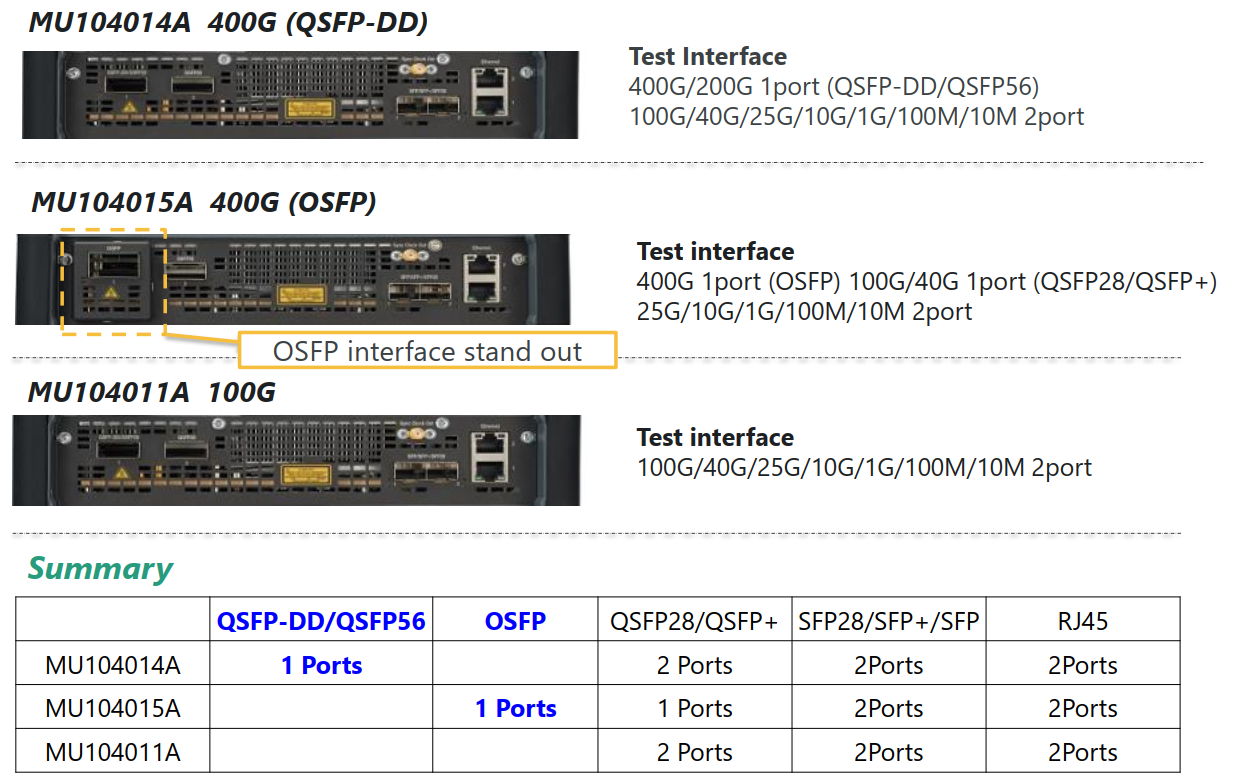

400G Multirate module

• One 400G port (can mount up to 2*400G modules for dual port 400G testing)
• Two ports for 100G and lower bit rates (2 mounted modules support up to 4 simultaneous ports)
• 400ZR/OpenZR+/OpenROADM operation without any restriction as well as 400G DR4/FR4/LR4
• Direct module support for QSFP-DD, OSFP, QSFP56, QSFP28, SFP/SFP+/SFP28
• Supports 10M to 400G Ethernet and 2.6G-100G OTN
