Radiodetection RD8200 RD8200G - Cable and Pipe Locator

PT. Visi Indotama Perkasa | Radiodetection Indonesia

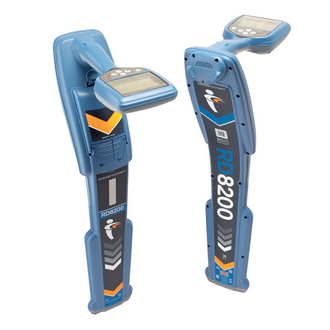

Radiodetection’s RD8200, 8200G are Radiodetection's premier advanced precision locator, designed for high performance locating whilst simplifying the task of distinguishing and tracing multiple utilities.
PT. Visi Indotama Perkasa or  Vindotama as Radiodetection authorized distributor in Indonesia supply RD8200 and RD8200G

The Radiodetection RD8200 is the modernized successor to the RD8100, streamlining multiple older variants into a single high-performance platform featuring streamlined ergonomics, advanced interference rejection, and enhanced connectivity

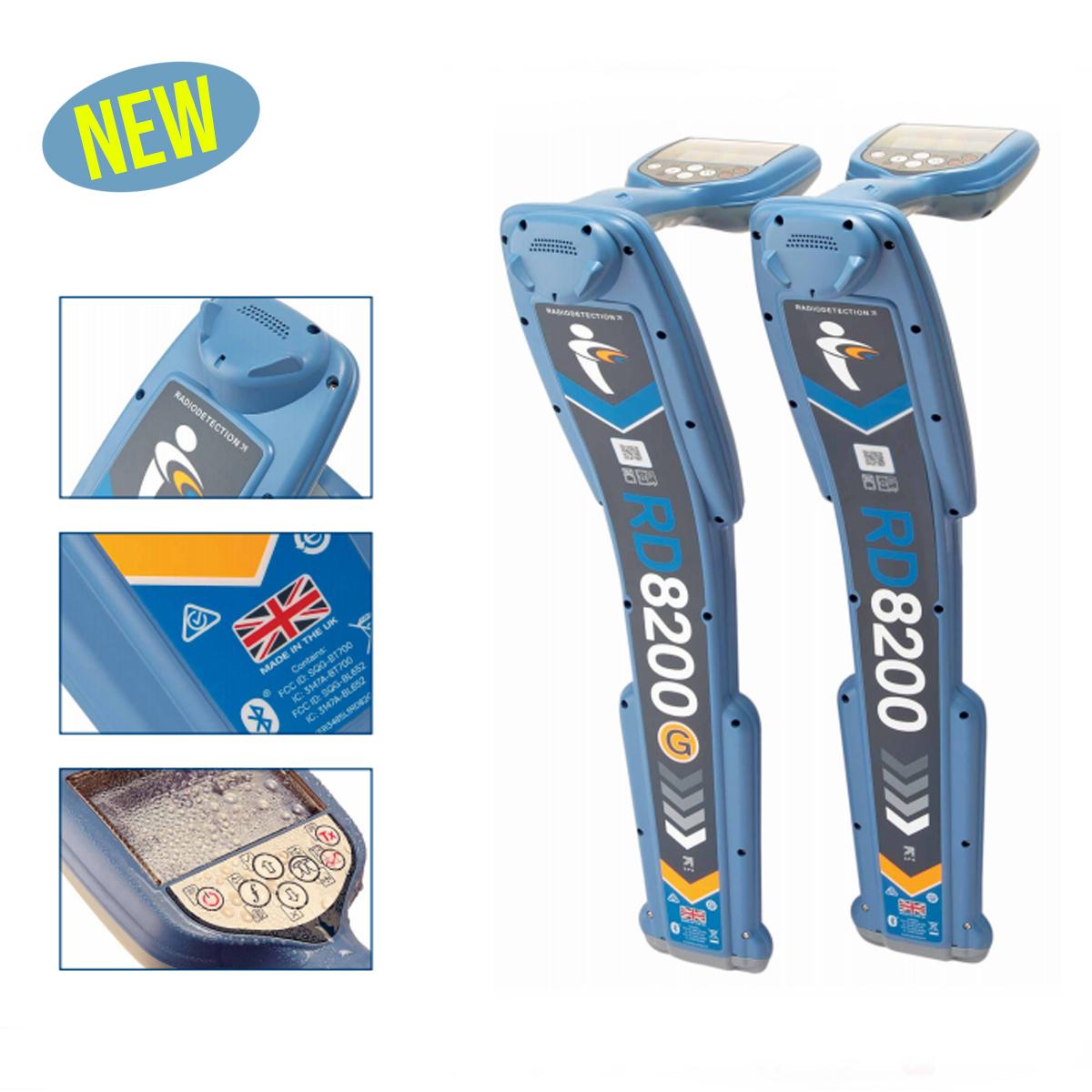

The main difference between the Radiodetection RD8200 and the Radiodetection RD8200G is that the RD8200G has built-in GPS/GNSS and automatic usage-data logging, while the standard RD8200 does not have those features built in. Both are precision instruments for locating buried cables and pipes.

Feature

  • Advanced Precision: Equipped with the latest technology, the RD8200 offers improved pinpointing of buried utilities and significantly reduces the risk of utility damage.
  • Multifunctional Frequencies: Features a wide range of frequencies ideal for different environments and utility types, providing flexible and highly effective locating capabilities

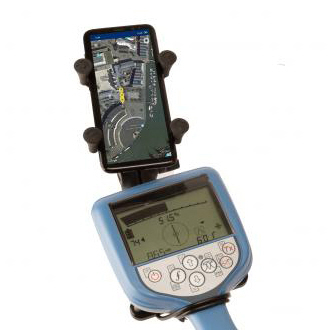

  • Integrated GPS and Data Logging: Built-in GPS tracks the location of every detection, which can be combined with the comprehensive data logging features to create detailed usage reports and maps.
  • Guidance Mode and Swing Error Indicator: Enhances user accuracy with clear guidance arrows and audio signals to assist in following the path of the cable or pipe. The innovative swing error indicator promotes correct usage, enhancing locate accuracy.
  • Robust Construction: The RD8200 is constructed to withstand harsh field conditions, ensuring reliability and durability.

There are extensive active and passive frequencies built into the RD8200, to match your locating needs. Need to track and locate an odd frequency? No problem. Up to 5 additional frequencies can be programmed into your locator to match it to the signals found on your target networks.

Using your cable locator incorrectly? The unique new Swing Warning System, drives correct usage. Locators must be kept perpendicular to the ground for best accuracy. The RD8200 features a built-in gyroscopic measurement system which alerts the user of excessive swing, driving correct usage.

In complex power environments, were multiple signals from high voltage equipment and cables create interference, Radiodetection’s Dynamic Overload Protection reduces the effect of the interference and Power Filters can be used to trace a single target line amongst multiple cables.

For reliable depth and current measurements, Radiodetection's TruDepth™ only indicates the depth when the RD8200 is correctly oriented above the target and with the new Vibration feedback, the locator handle vibrates when alerts activate, helping reduce the chance of missed warnings.

The higher frequencies of the RD8200 can be used to locate high impedance lines and sonde frequencies for duct and conduit tracing. Higher frequencies can also be used to trace sheathed domestic cables without grounding connections.
