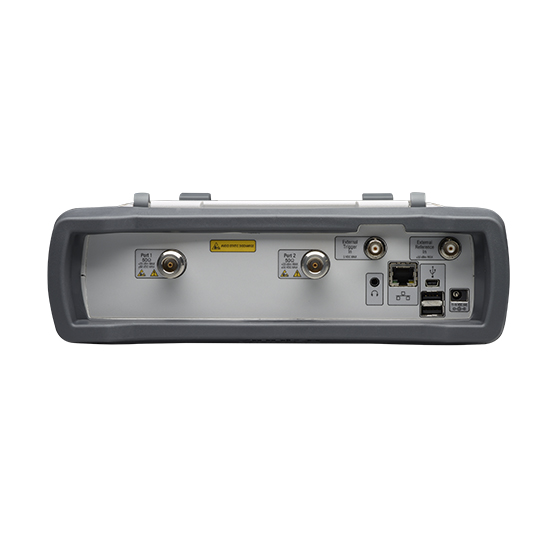

Anritsu Microwave Site Master S820E

Handheld Cable and Antenna Analyzer

PT. Visi Indotama Perkasa | Anritsu Indonesia

The Anritsu Microwave Site Master S820E family with frequency options covering 1 MHz — 8, 14, 20, 30, and 40 GHz, is the world’s most advanced Site Master ever developed. Available Vector Network Analyzer (VNA) and Vector Voltmeter (VVM) options allow users to easily expand the S820E’s versatility at any time. Adding options to the S820E is hassle free, simply purchase the desired option(s) and install the option activation key(s) provided by Anritsu. No need to send the instrument into a service department because all hardware and calibrations required are already built into the S820E before it leaves the factory.

Features

  • S820E frequency range: 1 MHz — 8, 14, 20, 30, or 40 GHz
  • VNA Mode (option) offers fully reversing 4 S-Parameter measurement capabilities
  • VVM Mode (option) with standard A/B and B/A Ratio capability
  • VIP Mode: Optical connector inspection with IEC 61300-3-35 based Pass/Fail standard (requires USB Video Inspection Probe G0306A, sold separately)
  • 110 dB of dynamic range from 20 MHz — 40 GHz
  • 550 μs/data point for fast field measurements
  • Advanced and Classic Mode GUI (i.e. S810D/S820D)
  • Coaxial and waveguide measurement supported
  • 1-port measurements: Return Loss, VSWR, Cable Loss, Distance-To-Fault, Smith Chart, 1-port phase
  • 2-port measurements: Transmission Measurement and Swept Cable Loss
  • High Accuracy Power Meter measurements with external power sensors
  • USB/Ethernet connectivity, full remote control capability
  • Intuitive menu-driven 8.4 inch touchscreen with daylight/nighttime viewable modes
  • Field-proven design: Explosive Atmosphere MIL-PRF-28800F Section 4.5.6.3 compliant
  • Supported by Multiwave Smart Aligner Android application

Standard 1-port measurement capabilities include:

  • Return Loss
  • VSWR
  • Cable Loss
  • Smith Chart
  • Phase
  • Distance-to-fault Return Loss
  • Distance-to-fault VSWR
  • Hi-Accuracy RF Power (USB Sensor required)

Standard 2-port measurement capabilities include:

  • 2-port Transmission Measurement
  • 2-port Transmission Measurement (Ext. Sensor required)
  • 2-port Swept Cable Loss (Ext. Sensor required)

Optional Vector Network Analyzer capabilities include:

  • Fully reversing sweep, no need to reverse DUT for S12 and S22 measurements
  • Simultaneous measurement of all 4 S-Parameters for a 2 port device

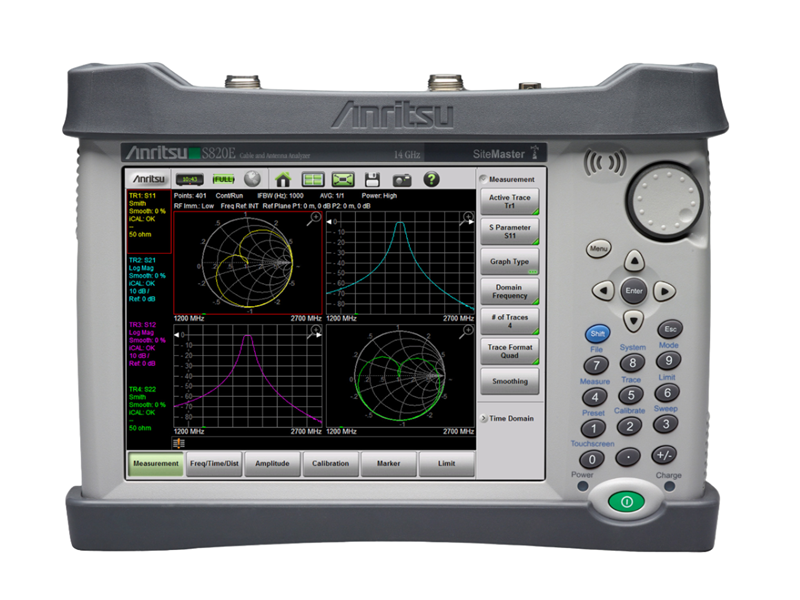

  • User configurable quad display in 1,2,3 or 4 display trace format with any combination of trace overlays
  • Large selection of graph types, including Real Impedance and Imaginary Impedance
  • IFBW selection from 10 Hz to 100 kHz in 1/2/5 format
  • Saves S2P files (3 formats), measurement files (.svna), screen images (.png), CSV and TXT files
  • Reference plane extension (both ports) feature also allows compensation for loss
  • User definable arbitrary data points, not limited to fixed selection
  • Interpolation (user selectable on/off) reduces need to re-calibrate
  • Independent trace-based smoothing, markers, limits, and pass/fail testing

Optional Vector Voltmeter capabilities include:

  • Vector Error Corrected Reflection and Transmission for absolute measurement of devices
  • A/B or B/A Ratio capability. May be used as drop-in replacement for legacy Vector Voltmeter
  • Variable IFBW settings from 10 Hz — 100 kHz to optimize performance
  • Flexible measurement formats include:
     – LogMag & Phase
     – LinMag & Phase
     – SWR
     – Impedance
  • Table Display provides simultaneous measurement of 12 devices + 1 reference
  • Multiple file save formats such as Measurement (.vvm), CSV (.csv), Text (.txt), or Image (.png)
