Anritsu MT9085 - Access Master OTDR
All Optical Fiber Evaluation Functions in One Tester
PT. Visi Indotama Perkasa | Anritsu Indonesia
The Anritsu Access Master MT9085 OTDR series is a compact handheld all-in-one tester for performing optical pulse tests, optical loss/power measurements, and optical fiber end-face inspections. It has a wide variety of applications, ranging from installation and maintenance (I&M) of trunk fibers (Core, Metro, Mobile Fronthaul, Mobile Backhaul) to troubleshooting Access networks, such as breaks in drop cables. Vindotama supply OTDR Anritsu MT9085A, MT9085B, MT9085C series
Product Features :
- 8-inch LCD with easy visibility even in direct sunlight
- Better work efficiency with synergy of LCD touchscreen, rotary knob, and dedicated hard keys
- Familiar functions and operations from previous ACCESS Master series
- Easy-to-Use Fiber Visualizer function for simple fiber path analysis
- Fast fiber bend location using high-speed, high S/N real-time sweep modes
- High-accuracy event detection and loss measurement (46-dB dynamic range max., 0.8 m event dead zone)
- Identification of each splitter event and up to 1 × 128 branches
- Optical loss test and optical power measurement with built-in light source, optical power meter, and visible light source options
- Optical fiber end-face inspection using external fiberscope option

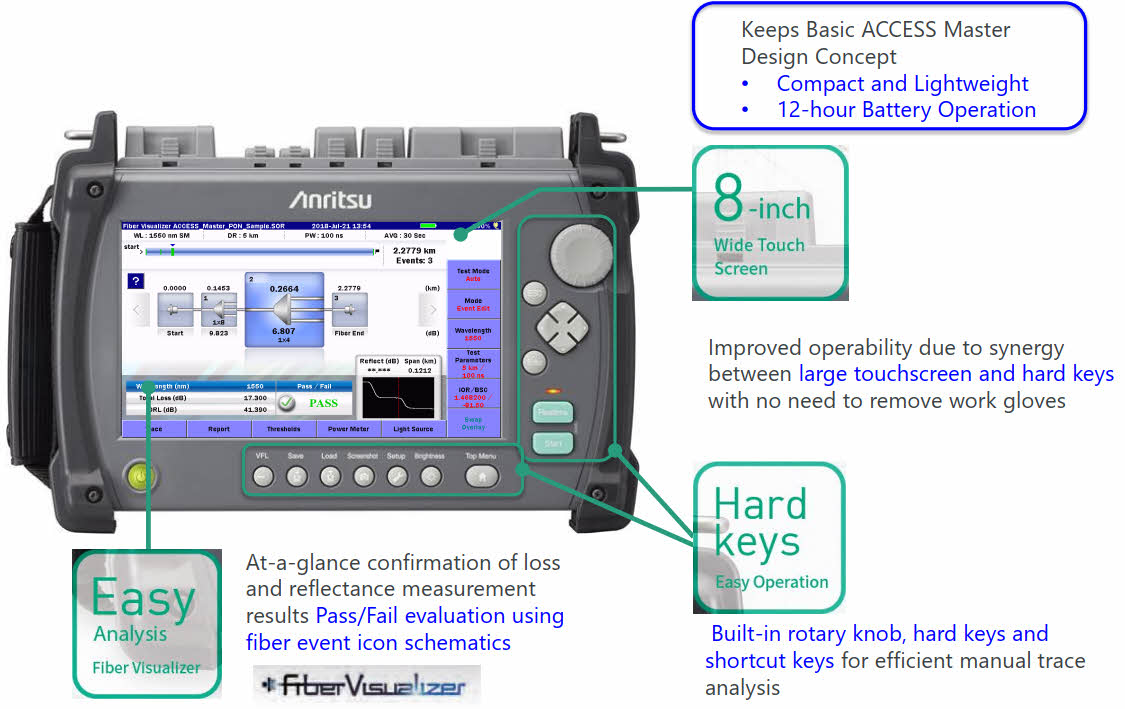

Improved Operability with 8-inch Wide Touchscreen and Hard Key
• OTDR Trace Analysis
Trace magnification
Cursor operation and marker positioning
• Easy analysis using synergy of both touchscreen and hard keys
• Data Saving and Report Creation
Intuitive data file naming using touchscreen input matrix
• Fast Application Start
File saving/loading
Screen capture
Visual light source
• Start applications using shortcut keys without screen transitions
Trace magnification
Cursor operation and marker positioning
• Easy analysis using synergy of both touchscreen and hard keys
• Data Saving and Report Creation
Intuitive data file naming using touchscreen input matrix
• Fast Application Start
File saving/loading
Screen capture
Visual light source
• Start applications using shortcut keys without screen transitions

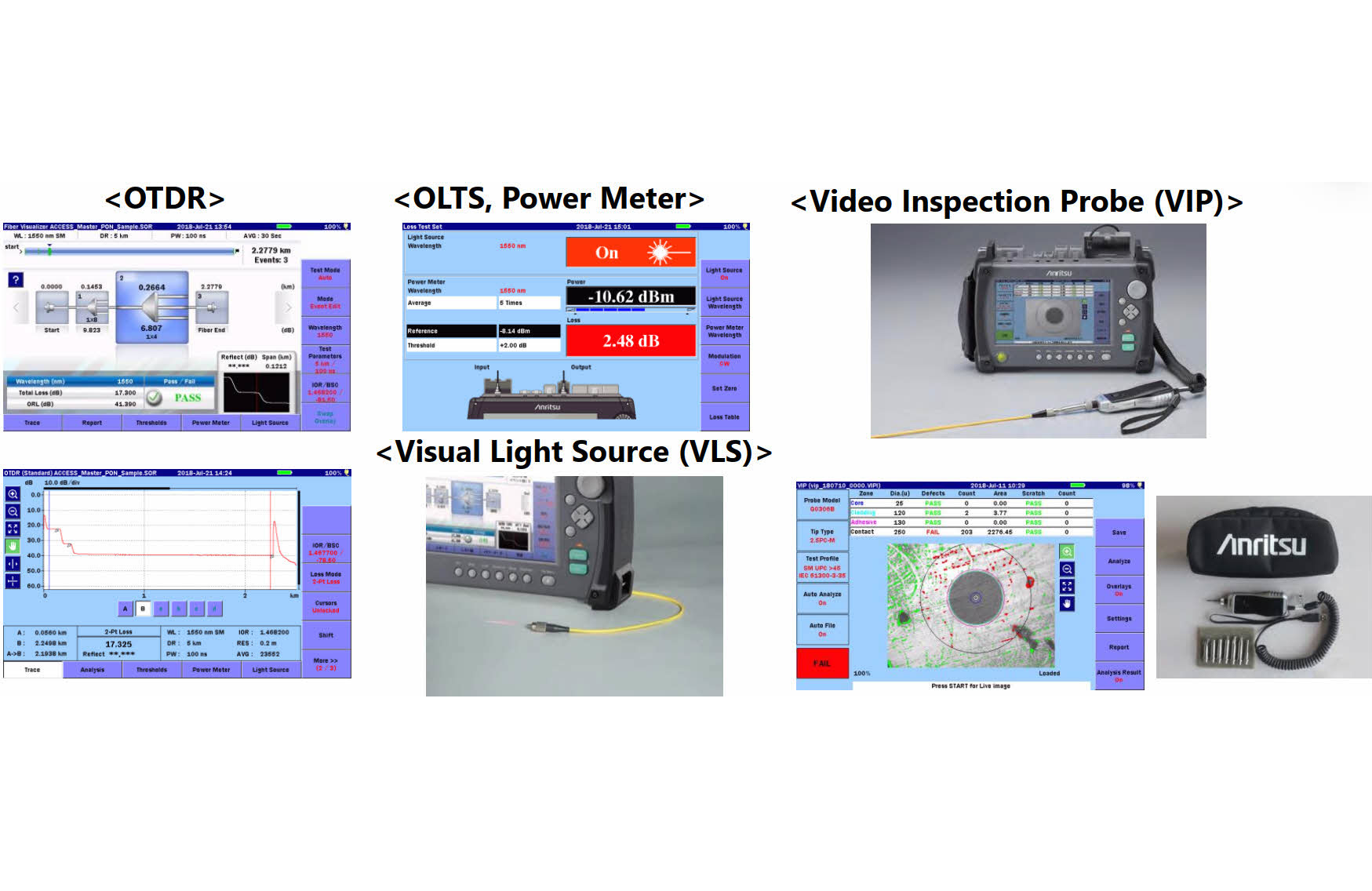

All Optical Fiber Evaluation Functions in One Tester
- The ACCESS Master MT9085 series is an all-in-one tester with OTDR, OLTS, and Visible Light Source functions required for evaluating optical fiber transmission links. It supports optical loss and reflectance measurements and analysis as well as evaluation of fiber events.
- In addition, connecting an external fiberscope (VIP–sold separately) enables inspection and automatic Pass/Fail evaluation of scratches and contamination on the fiber end face

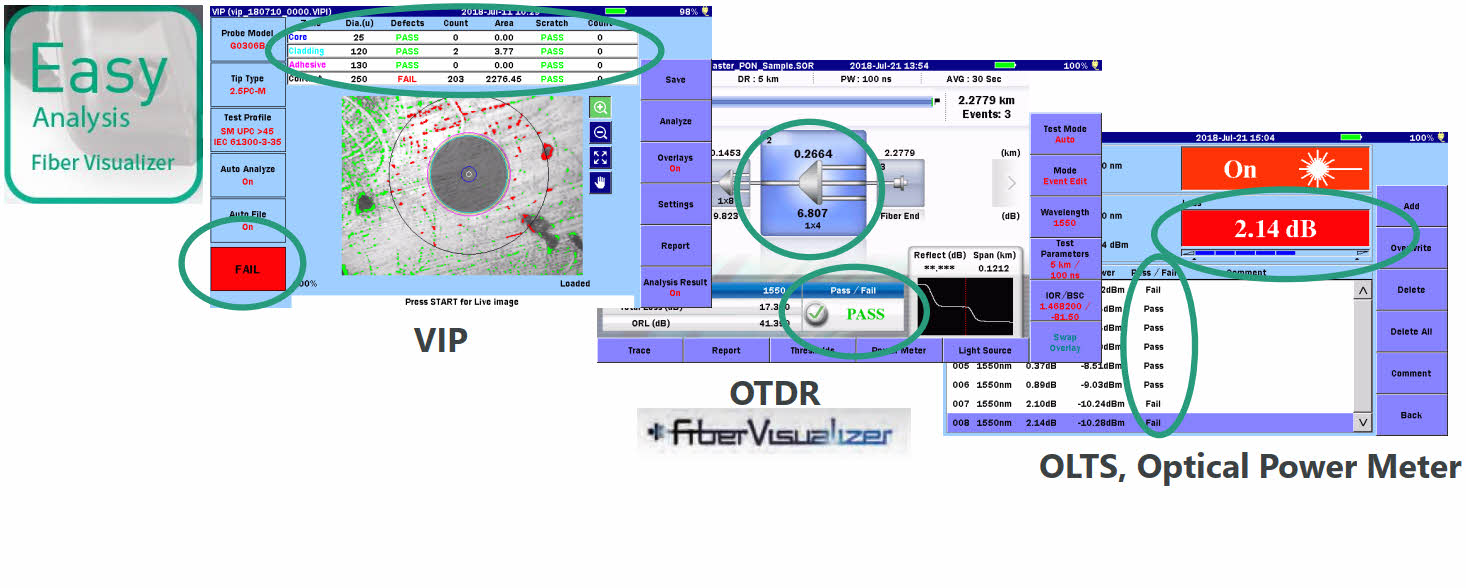

Easy-to-Read Measurement Results Pass/Fail Evaluation
- In many cases, onsite measurement requires Pass/Fail evaluation of the optical fiber path trace in accordance with installation work specifications
- The MT9085 series displays easy to understand Pass/Fail evaluation results for each of the OTDR Fiber Visualizer, OLTS, and VIP functions
- These evaluations are based on preset threshold values and international standards

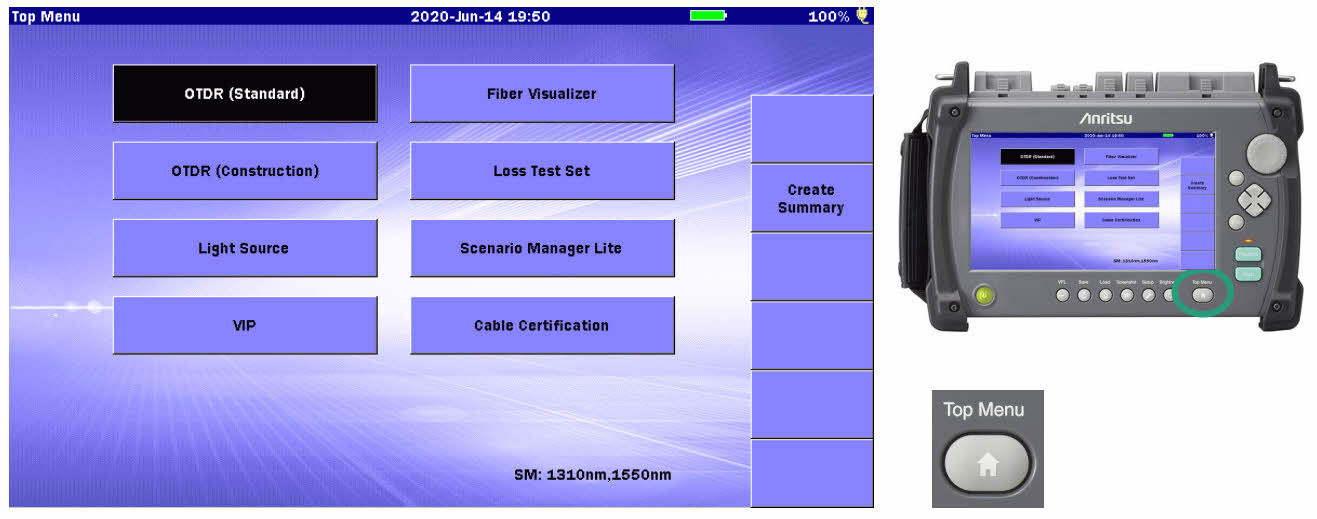

Top Menu Selection of Measurement Application
- The MT9085 series keeps the popular Top Menu selection method from previous ACCESS Master series
- Any required application can be chosen at any time by pressing a dedicated Top Menu hard key

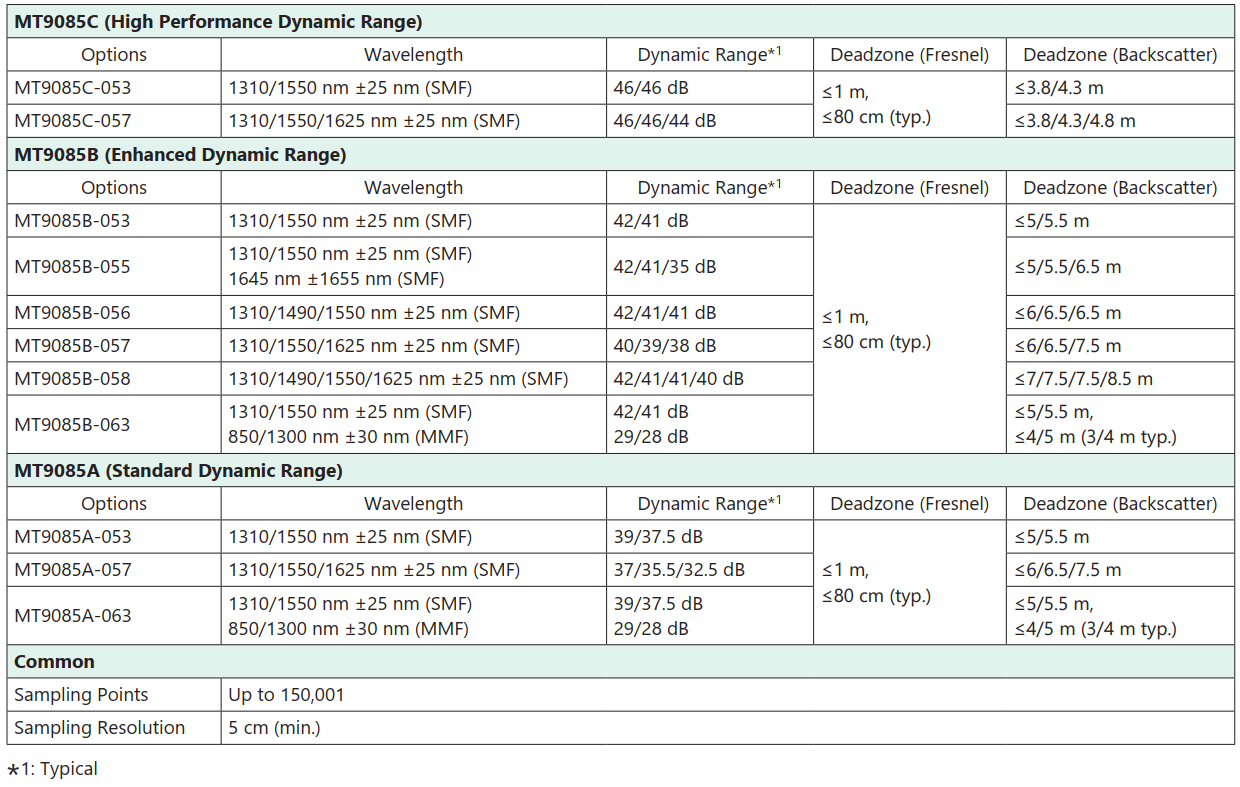

MT9085 OTDR Models
Anritsu Access MASTER
The Next Generation of OTDR
ACCESS Master has met and exceded the needs of contractors, technicians and engineers with industry leading specifications in all key measurement functions (including PONs, realtime measurement) and performance requirements for optical fiber construction and maintenance. All these functions are built in a compact, lightweight, all-in-one unit eliminating the burden of carrying multiple test sets on-site.
