Anritsu Site Master S331L

Handheld Cable and Antenna Analyzer

PT. Visi Indotama Perkasa | Anritsu Indonesia

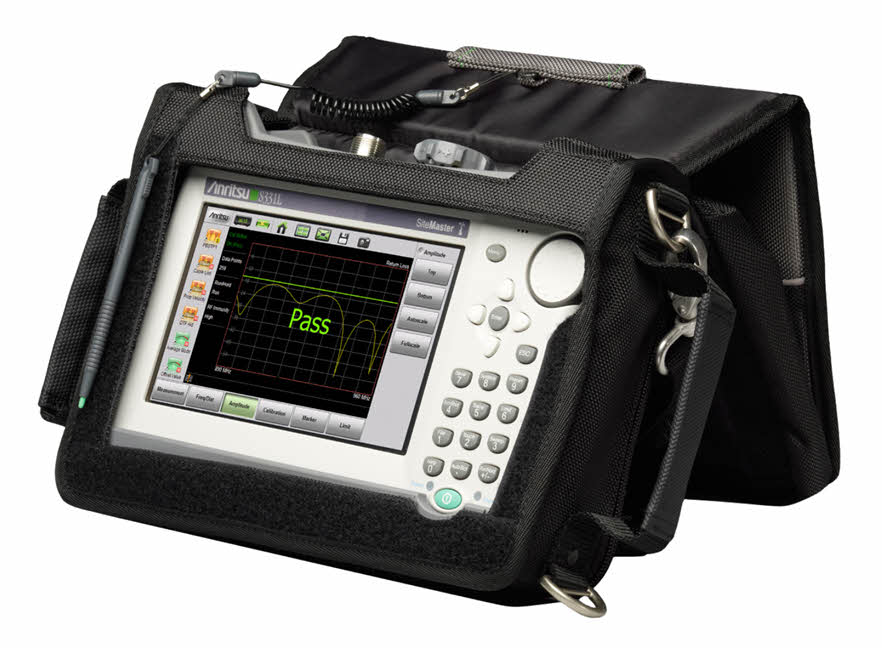

Anritsu Site Master 331L is a rugged, handheld cable and antenna analyzer. Utilizing the latest advancements in technology, the S331L has been optimized for field conditions, is easy to use, and has efficient sweep management capabilities. The S331L delivers an entire workday of battery operating time. With its large outdoor viewable 7” TFT touch screen display, intuitive GUI, and classic mode, the S331L can significantly increase a user’s efficiency in the field.

Features

  • 2 MHz to 4 GHz Handheld Cable and Antenna Analyzer, impact, dust, and splash resistant
  • More than 8 hours of continuous battery operation
  • Standard built-in InstaCal™ module and Power Meter
  • FlexCal™ maintains calibration with frequency changes
  • Built-in one button Help function

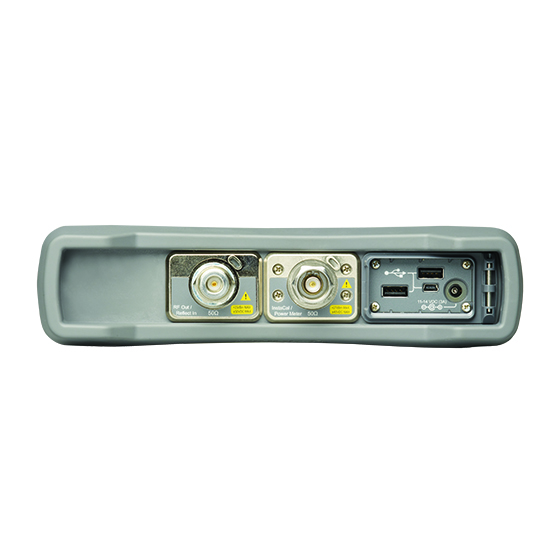

  • 800 x 480 7” TFT touch screen display and multiple USB ports
  • Internally store >1000 files with fast preview of stored traces
  • Supported by Multiwave Smart Aligner Android application

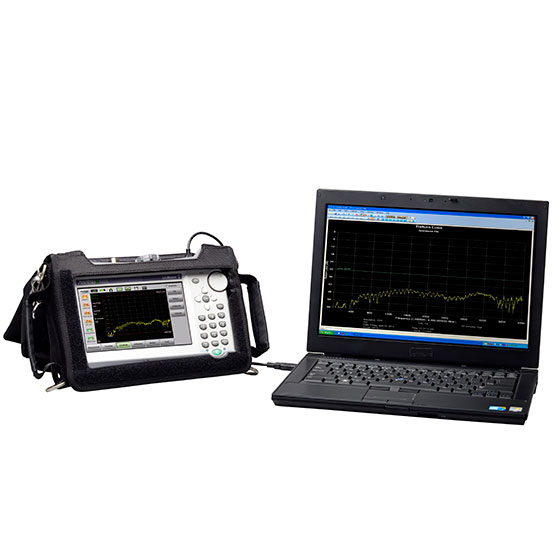

  • Industry standard *.dat format compatible with Line Sweep Tools (LST) and HHST
  • Optical Connector Inspection (requires Visual Inspection Probe)
1-port RF Cable and Antenna testing 2 MHz to 4 GHz such as:

  • Cellular
  • Public Safety
  • Radio and TV broadcasting
  • Aerospace and defense

Measurements include:

  • Return Loss
  • VSWR
  • Cable Loss
  • Smith Chart (50/75 ohm selectable)
  • 1-port Phase
  • Distance-to-Fault Return Loss
  • Distance-to-Fault VSWR
  • RF Power (50 MHz to 4 GHz)
